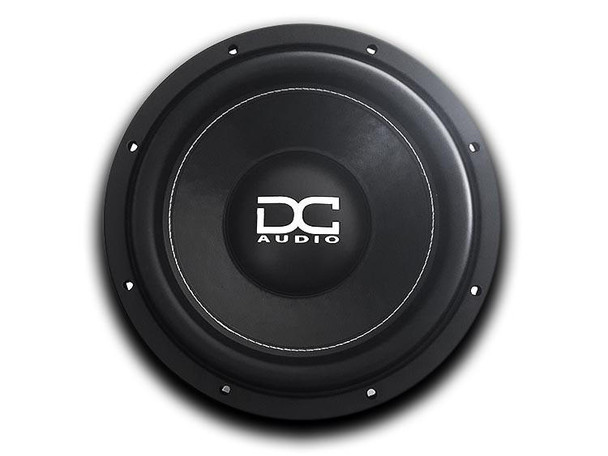

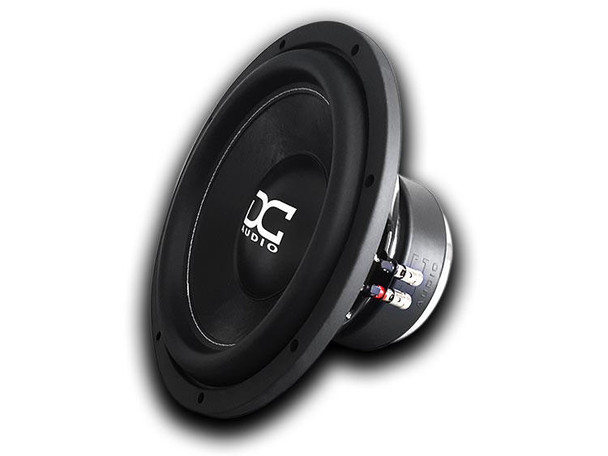

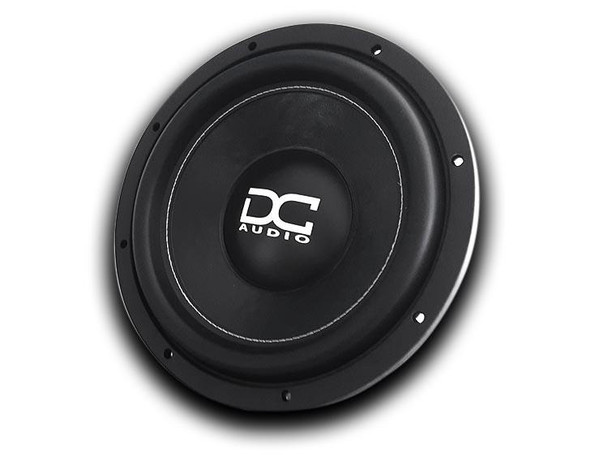

Level 1 12 m4 (300-watts-RMS)-DVC-4OHM

$150.00 $125.00
(You save $25.00)
SKU:
Level-1-12-m4-D4
Quantity:

Product Description



The Long awaited Level 1 Subwoofer is finally here!

It starts out with a double-stacked FEA optimized motor. A chrome top plate and T yoke. 2.0" voice coil, Glossy Black stamped Steel Frame, push terminals and a rating suggestion of 300w RMS/600w peak power handling.

This sub works great in sealed or ported enclosures.

Sub Size 10" 12"
Mounting Depth 6" 6.5"
Mounting Hole Diameter 9.3" 11.2"
Outside Driver Diameter 11.0" 12.5"
Weight 18lbs 18.2lbs
VC Diameter 2.0" 2.0"
Displacement .12³ ft .14³ ft
Magnet Weight 15lbs 15lbs
Power Handling RMS/Peak 300/600 300/600
Impedance (Ohm) D2 or D4 D2 or D4
Sd 324cm² 481cm²
Vas 17.1 liters 47.7 liters
Cms 0.12 mm/N 0.12 mm/N
Mms 146.8 g 168 g
Fs 37.4 Hz 32.6 Hz
BL 23 N/A 23.2 N/A
Re 8 ohm 8 ohm
Le 3.88 mH 2.79 mH
Qms 3.15 2.52
Qes 0.52 0.51
Qts 0.45 0.43
Xmax 19 mm 19 mm
Ref SPL @ 1 watt 84.2 dB 86.9 dB
Suggested Sealed .5³ ft .75³ ft
Suggested Ported  1.0³ ft 1.25³ ft
