Down4Sound

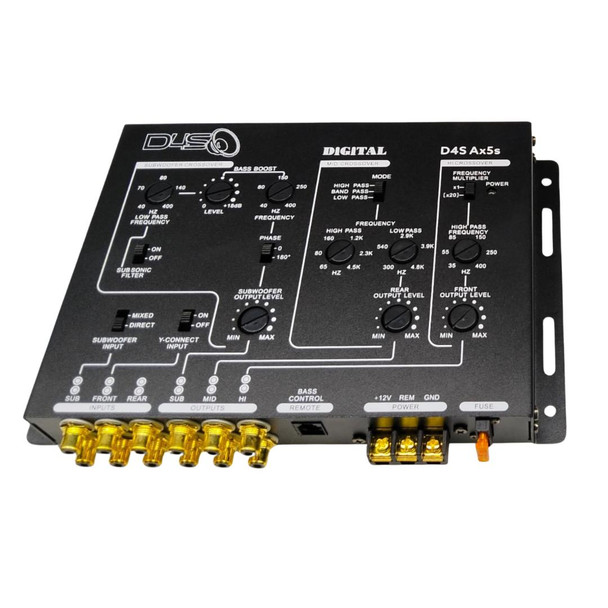

Down4Sound D4S-AX5S | 5-Way Digital Powered Crossover
- SKU:
- D4S-AX5S
- Condition:
- New
Description
The Down4Sound D4S AX5S 5 Way Digital Crossover is designed for car audio enthusiasts and professional installers who want precise system control without the complexity of software based DSP processors. Instead of relying on apps, laptops, or layered menus, the AX5S delivers direct digital crossover control through hands on, real time adjustment knobs.
This approach allows you to tune your system instantly while listening, making it easier to dial in crossover points, balance output levels, and refine bass response without interrupting the listening experience.
Complete System Frequency Control
The AX5S provides dedicated subwoofer, front, and rear outputs, giving you full frequency management across your entire audio system. Each output section features independent level controls and adjustable filtering so every speaker receives only the frequencies it is designed to play.
High pass, low pass, and band pass filters allow accurate crossover tuning for multi amplifier systems. A built in subsonic filter protects subwoofers from damaging ultra low frequencies, while bass boost and phase control help fine tune low end impact and integration.
A wired remote bass level control is included, allowing convenient subwoofer adjustment directly from the driver’s seat.
Designed for Clean Signal and Long Term Reliability
The AX5S is built with sound quality and durability in mind. High quality Tiffany style RCA inputs ensure a secure, low noise connection, while gold plated terminals maintain strong signal transfer over time. Internal fuse protection and a compact, rugged chassis make the AX5S suitable for daily driven vehicles, competition builds, and professional installations.
With a strong 9 volt RMS output and low total harmonic distortion, the AX5S delivers clean, consistent signal to your amplifiers.
Ideal Use Cases
The D4S AX5S is ideal for active car audio systems, multi amplifier setups, bass focused builds, and SQL systems that require precise crossover control without digital complexity. It is especially well suited for installers and enthusiasts who prefer physical tuning controls and immediate feedback.
Key Features
- Five way digital active crossover
- Independent level controls for subwoofer, front, and rear outputs
- High pass, low pass, and band pass filtering
- Built in subsonic filter for subwoofer protection
- Bass boost control from 0 to 12 dB
- Selectable subwoofer phase control at 0 or 180 degrees
- Wired remote bass level control included
- Strong 9 volt RMS output
- High quality Tiffany RCA inputs
- Gold plated terminals
- Fuse protected design
- Compact chassis for easy installation
Technical Specifications
- Crossover type: 5 way digital active
- Frequency response: 10 Hz to 50 kHz
- Output voltage: 9 V RMS
- Signal to noise ratio: 93 dB
- Channel separation: 60 dB
- Total harmonic distortion: less than 0.01 percent
- Input and output connections: RCA
- Remote output: 12 V
- Fuse rating: 3 amps
- Dimensions: 190 × 140 × 38 mm
- Dimensions in inches: approximately 7.48 × 5.51 × 1.50 inches
Why Choose the AX5S
The AX5S delivers digital crossover performance with the simplicity of physical controls. It allows fast, accurate tuning without software, provides complete control over subwoofer, front, and rear outputs, and is built with the reliability and signal quality expected in serious car audio systems.
Warranty Information
Warranty Information
Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier.
All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only.
At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return!
* Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt.
Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/
Down4Sound - Hours of Operation
Related Products
Related Products

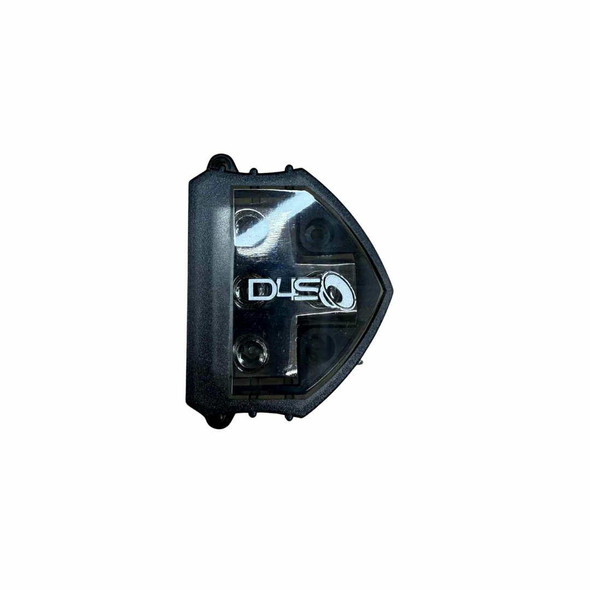

DOWN4SOUND D4S-DB1030 | Distribution Block
Down4Sound
DOWN4SOUND D4S-DB1034 | Distribution Block
Down4Sound

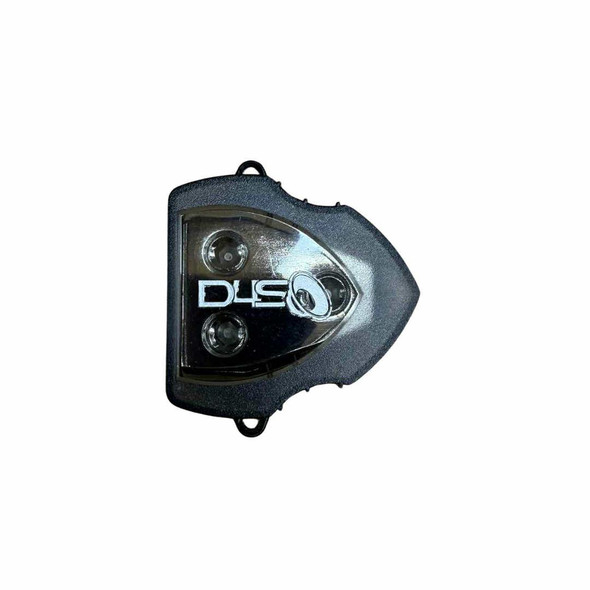

DOWN4SOUND D4S-DB1020 | Distribution Block
