Down4Sound
Down4sound D4S DW1ST - Precision Aluminum SUPER TWEETER - 100W RMS - 8 OHM (PAIR)
- SKU:
- D4S-DW1ST8OHM
Description

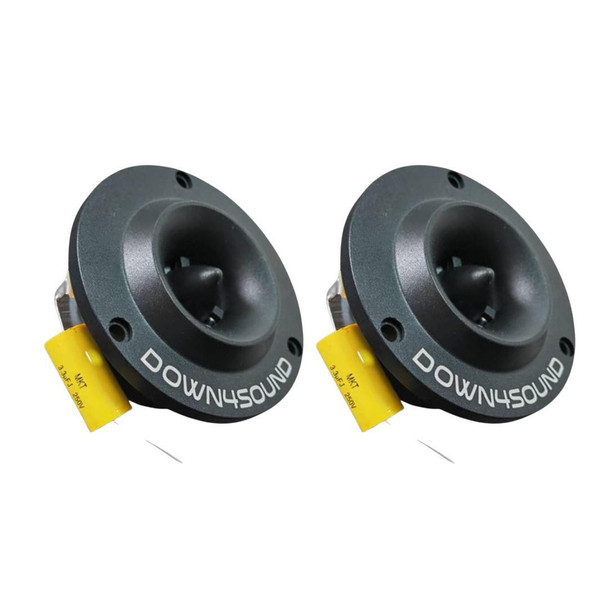

D4S DW1ST Precision Aluminum Super Tweeter
Product Overview
The Down4Sound D4S DW1ST Precision Aluminum Super Tweeter delivers powerful, detailed high-frequency performance for serious audio enthusiasts. Built from cast aluminum and engineered for precision, the DW1ST is designed for maximum output, clarity, and flexibility — ready to integrate seamlessly into any car or pro-audio system.
Key Features
- 4-Inch Cast Aluminum Tweeter
Machined for strength and performance. The heavy-duty cast aluminum body minimizes resonance and enhances heat dissipation for consistent output at high volume levels. - Aluminum Diaphragm
Lightweight and rigid for fast transient response and clean, distortion-free highs. Every note is reproduced with precision and definition. - 1-Inch KSV Voice Coil
High-temperature Kapton voice coil designed for efficient power handling and stable operation even under demanding conditions. - Wide Frequency Response (1,500Hz – 23,000Hz)
overs a full spectrum of high-frequency detail, from upper mids to ultra-high extension. - High Sensitivity – 102 dB
Delivers exceptional loudness and efficiency with minimal amplifier power — perfect for competitive or high-impact systems. - Preinstalled 3.3 µF / 250V Crossover Capacitor
The DW1ST includes a prewired first-order high-pass crossover for immediate protection and plug-and-play setup. This capacitor can be removed if you prefer to run an active crossover or a custom external network.
8 Ω tweeter → ~12 kHz crossover - Sold as a Matched Pair
Each pair is precision-matched for consistent response and balanced imaging between left and right channels.
Why Choose the Down4Sound D4S DW1ST
- Professional-Grade Construction: Aluminum diaphragm and cast body for strength, precision, and long-term reliability.
- Flexible Integration: Preinstalled crossover makes setup simple, with the option to remove for active systems or custom tuning.
- Exceptional Clarity and Output: Designed for high-efficiency sound systems where accuracy and detail matter most.
- Competition-Ready Performance: Handles high power while maintaining tonal balance and transient speed.
Technical Specifications
- Size: 4-inch Cast Aluminum Super Tweeter
- Voice Coil: 1-inch KSV
- Diaphragm: Aluminum
- Frequency Response: 1,500Hz – 23,000Hz
- Sensitivity: 102 dB
- Impedance: 8 Ohm
- Preinstalled Capacitor: 3.3 µF / 250V (removable)
- Power Handling: 100W RMS
- Sold as: Pair
Upgrade Your Highs
The Down4Sound D4S DW1ST Precision Aluminum Super Tweeter offers studio-grade clarity and performance flexibility. With a removable crossover for active or passive configurations, it’s ready to adapt to your system and your tuning goals.
Order now and experience the precision, power, and performance that define Down4Sound.
Warranty Information
Warranty Information
Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier.
All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only.
At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return!
* Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt.
Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/
