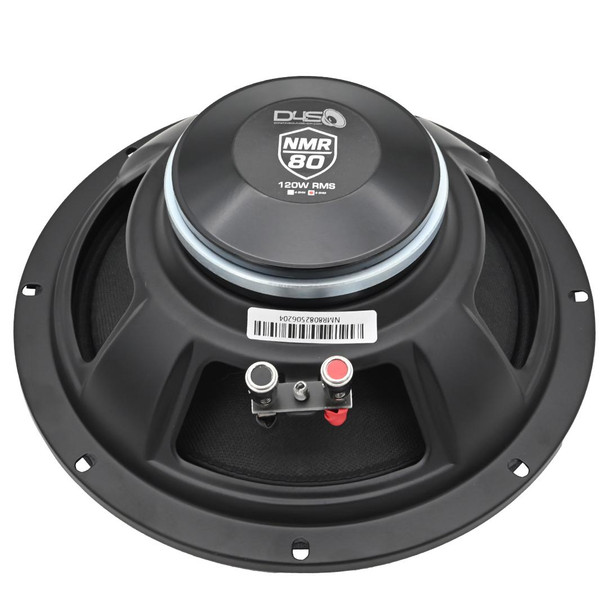

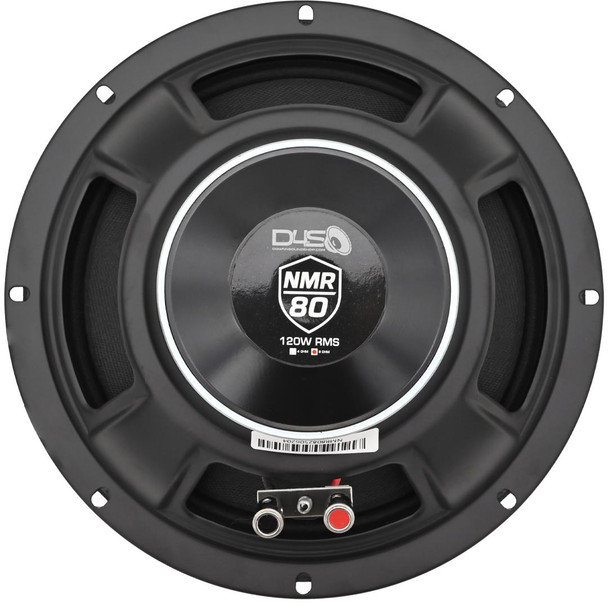

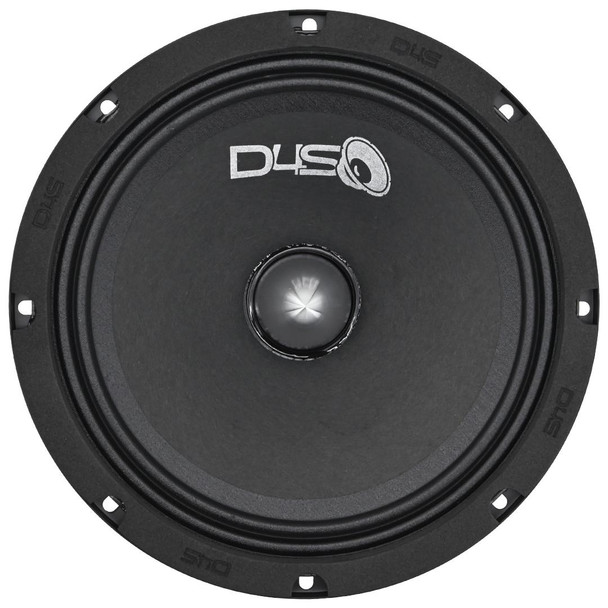

DOWN4SOUND D4S-NMR808 Neo Mid Range Speaker - 8 Inch, 120W RMS, 8 Ohm

(No reviews yet) Write a Review
SKU:
D4S-NMR808
MPN:
D4S-NMR80
  • Down4Sound DOWN4SOUND D4S-NMR808 Neo Mid Range Speaker - 8 Inch, 120W RMS, 8 Ohm
  • Down4Sound DOWN4SOUND D4S-NMR808 Neo Mid Range Speaker - 8 Inch, 120W RMS, 8 Ohm
  • Down4Sound DOWN4SOUND D4S-NMR808 Neo Mid Range Speaker - 8 Inch, 120W RMS, 8 Ohm
  • Down4Sound DOWN4SOUND D4S-NMR808 Neo Mid Range Speaker - 8 Inch, 120W RMS, 8 Ohm
MSRP: $89.99
$79.99
— You save $10.00

  Lease to own   Pay as low as   $/week

Description

The D4S-NMR804 is a professional-grade 8" midrange speaker designed for high-output systems that demand precision and volume. With its lightweight neodymium motor and high-sensitivity design, this driver delivers tight, aggressive mids with clean response across the vocal range — without adding unnecessary weight to your build.

Specifications

  • Nominal Diameter: 8 in (210 mm)
  • Power Handling (RMS): 120W
  • Sensitivity (1W/1m): 100 dB
  • Frequency Response: 200 Hz – 15 kHz
  • Impedance: 4 Ohm

Mounting Information

  • Overall Diameter: 8 in (210 mm)
  • Baffle Cutout Diameter: 6.54 in (166 mm)
  • Bolt Circle Diameter: 7.8 in (198 mm)
  • Mounting Depth: 3.07 in (78 mm)
  • Net Weight: ~2.6 lbs (1.2 kg)

Thiele/Small Parameters

  • Resonant Frequency (Fs): 142 Hz
  • Qms (Mechanical): 8.8
  • Qes (Electrical): 0.72
  • Qts (Total): 0.67
  • Vas: 9.1 L
  • Cms: 131 µM/N
  • BL: 9.3 N/A
  • Sd: 21.6 cm²
  • Xmax: 2.5 mm
