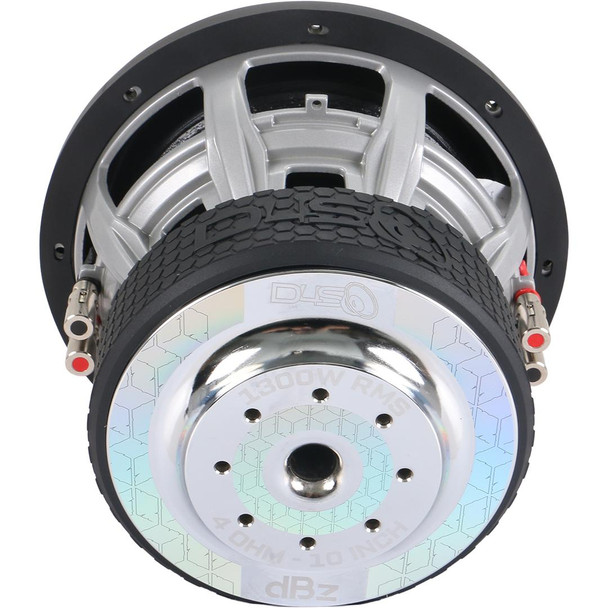

DOWN4SOUND DBz 10" SUBWOOFER - 4 OHM DVC | 1300W RMS
- SKU:
- DBz10D4
Description
Estimated Ship-Out Date: 12/15
The DOWN4SOUND DBz-10 D4 is built for car audio enthusiasts seeking massive bass, rugged performance, and unbeatable value. Delivering a true 1300W RMS, this subwoofer produces strong, punchy bass without demanding a premium budget. With a dual 4-ohm voice coil configuration, the DBz-10 D4 offers wiring flexibility for a wide variety of amplifier setups. Its real carbon fiber dustcap adds a sleek aesthetic while improving rigidity and long-term durability.
Built to perform in both compact and mid-sized enclosures, the DBz-10 D4 delivers serious output for daily drivers, demo setups, and cost-effective high-performance builds.
Key Features
- 1300W RMS power handling
- Dual 4-ohm voice coil design
- 2.75-inch high-temperature voice coil
- 28 mm one-way Xmax for extreme linear excursion
- Real carbon fiber dustcap for strength, rigidity, and premium appearance
- Advanced venting throughout the motor structure for improved cooling
- Heavy-duty build engineered for long-term high-output use
Technical Specifications (T/S Parameters)
- Revc (DC Resistance): 6.050 ohm
- Resonance Frequency (Fs): 40.803 Hz
- Qms: 2.360
- Qes: 0.510
- Qts: 0.420
- Mms (Moving Mass): 331.124 g
- Cms (Compliance): 45.948 μm/N
- Rms: 0.795
- Vas: 8.600 L
- Sd: 56.305 cm²
- BL Product: 31.746 T·m
- Sensitivity (SPL): 82.5 dB
- Xmax: 28 mm (one-way, mechanical)
- Displacement: 0.09 cu ft
Engineering and Construction
- High-efficiency motor system engineered for aggressive output
- Rear gap and pole venting for improved cooling and reduced thermal compression
- Reinforced suspension designed for reliable high-excursion performance
- Precision-wound 2.75" voice coil built for thermal strength
- Premium carbon fiber dustcap improves rigidity and reduces cone flex
- Built to maximize output while maintaining long-term durability
Recommended Enclosures
Sealed Enclosure:
- 0.5 cubic foot (net)
Ported Enclosure:
- 1.0 cubic foot (net)
- Recommended Tuning: 32 Hz
This enclosure range gives the DBz-10 D4 excellent balance between low-end extension and punchy upper bass for daily listening.
Physical Dimensions
- Cutout Diameter: 9.45 in (240 mm)
- Mounting Depth: 7.36 in (187 mm)
- Outside Diameter: 10.79 in (274 mm)
- Motor Diameter: 7.48 in (190 mm)
- Net Weight: 31.7 lb (14.4 kg)
- Gross Weight: 35.3 lb (16.0 kg)
Why You Should Buy the DBz-10 D4
- Delivers true 1300W RMS performance suitable for demanding systems
- Compact footprint with impressive output capability
- Dual 4-ohm coils provide wiring flexibility across common amplifier setups
- Carbon fiber dustcap enhances both appearance and structural rigidity
- Perfect blend of affordability, durability, and daily-driving performance
Ideal Applications
- Daily-driven builds needing high output without large enclosure requirements
- Systems tuned in the 28–35 Hz range, where the DBz-10 D4 produces deep, rolling lows enhanced by real cabin gain
- Ported or sealed enclosures in sedans, SUVs, hatchbacks, and trucks
- SQL-style daily setups seeking a balance of low-end authority and punch
- Users wanting responsive, aggressive bass performance at a budget-friendly price
