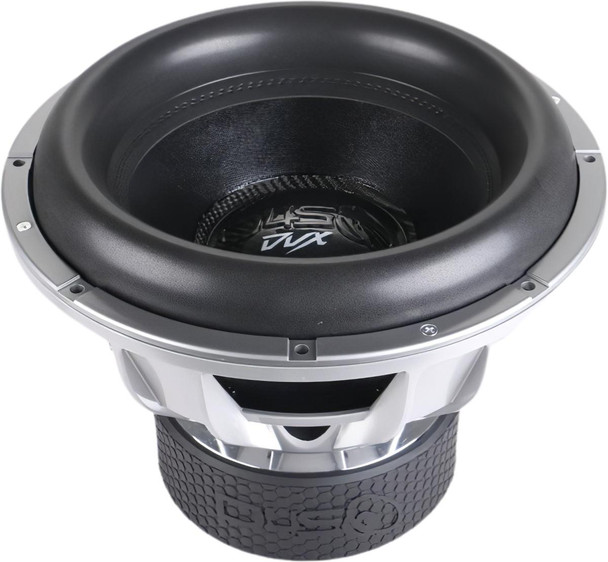

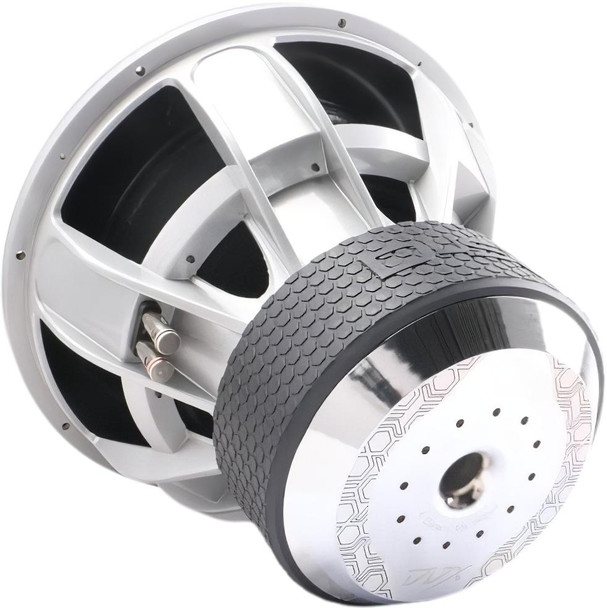

DOWN4SOUND DVX 15" SUBWOOFER - 2 OHM DVC | 1700W RMS
- SKU:
- DVX15D2
Description
The DOWN4SOUND DVX-15 D2 is engineered for listeners who demand authoritative, precise, and durable low-frequency performance. Built with a high-strength motor, extended mechanical throw, and a real carbon fiber dustcap, the DVX-15 delivers exceptional output and accuracy suitable for daily driving, demonstration builds, and high-power systems.
This model provides a true 1700W RMS power rating and a dual 2-ohm voice coil configuration for flexible amplifier matching and wiring options. Every component is designed for efficiency, cooling, and long-term reliability under significant sound pressure levels.
Key Features
- 1700W RMS power handling
- Dual 2-ohm voice coil design
- 3-inch high-temperature voice coil
- 33 mm one-way Xmax for extended linear travel
- Full carbon fiber dustcap for strength and rigidity
- Advanced venting throughout the motor structure for improved cooling
- 65-lb heavy-duty construction designed for high output applications
- 8.66-inch (220 mm) motor diameter
- Highly extended pole piece for increased linear throw
- Pole vent flared on both ends for superior airflow and low noise
Technical Specifications (T/S Parameters)
- Revc (DC Resistance): 2.050 ohm
- Resonance Frequency (Fs): 30.413 Hz
- Qms: 2.732
- Qes: 0.534
- Qts: 0.447
- Mms (Moving Mass): 387.231 g
- Cms (Compliance): 70.720 μm/N
- Rms (Mechanical Resistance): 0.803
- Vas: 53.606 L
- Sd: 73.062 cm²
- BL Product: 28.948 T·m
- Sensitivity (SPL): 86.4 dB
- Xmax: 33 mm (one-way)
- Displacement: 0.19 cu ft
Engineering and Construction
- Extended pole piece for improved linear performance and mechanical control
- Dual-flared pole venting for low-noise airflow and efficient heat removal
- Rear gap ventilation for reduced voice coil temperatures during sustained playback
- 8.66-inch (220 mm) motor diameter for substantial magnetic strength
- Long-fiber spider system for reliable, consistent suspension behavior
- Carbon fiber dustcap for reduced moving mass and enhanced rigidity
Recommended Enclosure
Ported Enclosure:
- Volume: 4.5 cubic feet (net)
- Tuning Frequency: 32 Hz
This alignment provides strong low-frequency extension, balanced output, and low distortion suitable for daily music listening and high-output builds.
Physical Dimensions
- Cutout Diameter: 14.17 in (360 mm)
- Mounting Depth: 10.63 in (270 mm)
- Outside Diameter: 15.59 in (396 mm)
- Motor Diameter: 8.66 in (220 mm)
- Weight: 65 lb
Why Choose the DVX-15 D2
- High output capability with accurate, controlled low-frequency reproduction
- Durable design optimized for long-term performance in demanding systems
- Flexible wiring thanks to the dual 2-ohm voice coils
- Real carbon fiber dustcap adds both strength and professional appearance
- Designed for users who require deep, powerful bass without sacrificing clarity
Ideal Applications
- Daily music systems
- High-power demo builds
- Trunk or wall installations
- SQL (Sound Quality Loud) and SPL-leaning setups
- Users seeking strong low-end response in the 28–45 Hz range
