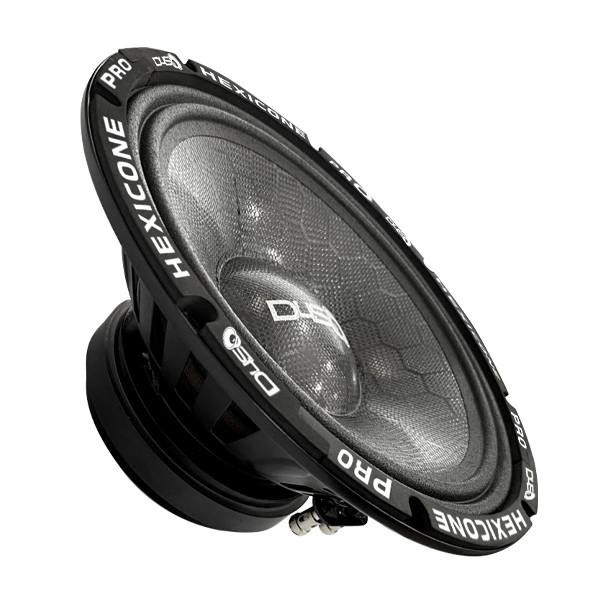

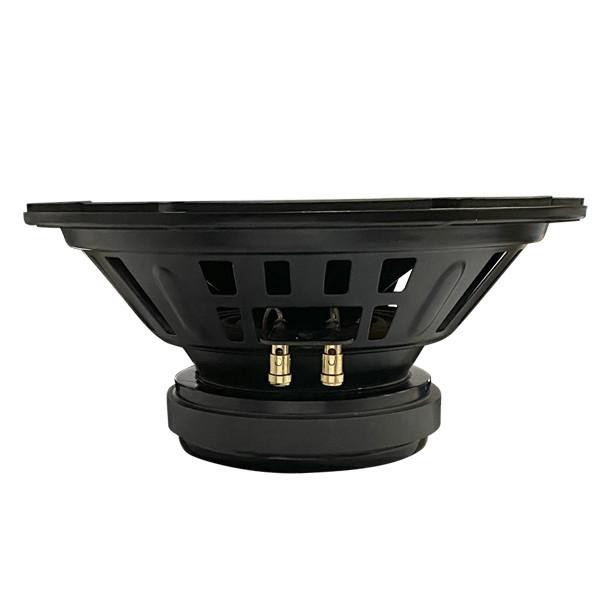

DOWN4SOUND Hexicone PRO 100 SS4 All SZN - 10" Carbon Fiber Pro Audio Speaker - 300W RMS, 4 Ohm
- SKU:
- PRO100SS0004
- MPN:
- PRO100SS0004
Description
The Down4Sound Hexicone PRO 100 SS All SZN, a formidable 10-inch Pro Audio Speaker, redefines sound performance with cutting-edge engineering. Designed with the advanced Hexicone carbon fiber structure, this speaker boasts durability, clarity, and power, making it ideal for both indoor and outdoor use. With marine-grade resistance and unparalleled resilience, it’s your go-to solution for exceptional audio in any environment.
Key Features:
- Revolutionary Hexicone Design: Crafted with carbon fiber in a hexagonal pattern, ensuring enhanced durability and optimized sound performance.
- Marine-Grade Durability: Resilient against UV rays, salt, humidity, and extreme weather, ideal for vehicles, boats, and off-road adventures.
- Dynamic Versatility: Built for diverse applications, including cars, trucks, SUVs, motorcycles, snowmobiles, and boats, ensuring immersive audio anywhere.
- Unmatched Sound Clarity: Delivers superior sound with a wide frequency range, RMS power of 225 - 300W, and 4 Ohm impedance.
- Optimized Performance: Engineered to handle the toughest environments with precision and stability.
Specifications:
- RMS Power: 225 - 300W
- Impedance: 4 Ohm
- Coil Size: 2.05 Inch
- Magnet Type: Ferrite
- Sensitivity: 93 dB 1W/1M
- Frequency Range: 49 Hz - 9kHz (usable)
- Cutout Diameter: 9.13 Inch
- Mounting Depth: 4.13 Inch
- Overall Diameter: 10.5 Inch
Additional Technical Parameters:
- Re: 3.88 Ohm (Electrical voice coil resistance)
- Le: 0.093 mH (Frequency-independent voice coil inductance)
- L2: 0.621 mH (Para-inductance of voice coil)
- R2: 3.25 Ohm (Resistance due to eddy current losses)
- Cmes: 596.96 µF (Capacitance representing moving mass)
- Lces: 14.27 mH (Inductance representing driver compliance)
- Res: 45.02 Ohm (Mechanical loss resistance)
- fs: 54.5 Hz (Driver resonance frequency)
- Mms: 35.464 g (Mechanical mass of diaphragm assembly)
- Mmd: 27.970 g (Mass of voice coil without air load)
- Rms: 1.320 kg/s (Mechanical resistance of total driver losses)
- Cms: 0.240 mm/N (Compliance of driver suspension)
- Kms: 4.16 N/mm (Stiffness of suspension)
- BL: 7.708 N/A (Force factor)
- Qtp: 0.733 (Total Q-factor considering all losses)
- Qms: 9.207 (Mechanical Q-factor)
- Qes: 0.794 (Electrical Q-factor)
- Qts: 0.731 (Total Q-factor with Re and Rms only)
Why Choose the Hexicone PRO 100 SS4 All SZN? The Hexicone PRO series isn’t just a speaker; it’s a statement of precision, durability, and power. Whether you're elevating your car's audio system, tackling the high seas, or navigating rugged terrain, this speaker promises consistent performance and impeccable sound. Sold individually, it is the perfect upgrade for audiophiles and audio enthusiasts who demand the best.
