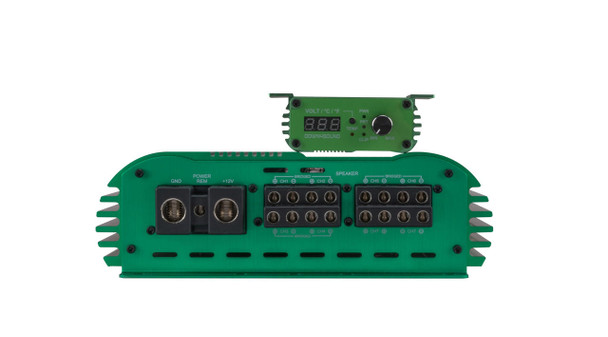

DOWN4SOUND JP77 GREEN | 3000W RMS - 7 Channel Amplifier
- SKU:
- JP77-GR-nli
- MPN:
- JP77-GN
Description
Down4Sound JP77 GREEN Amplifier: 3000W RMS - 7 Channel Amplifier Step into a new era of audio excellence with the Down4Sound JP77 GREEN. This 7-channel amplifier, adorned in a vibrant green finish, boasts an impressive 3000W RMS power output. It is the perfect match for audiophiles who prioritize both immense power and refined sound quality in their car audio systems. The JP77 GREEN is not merely an amplifier; it's a showcase of advanced sound engineering, designed to enhance your listening experience to the highest level.
Special Highlight: Discover the formidable power and sophisticated performance of the JP77 by viewing the amp dyno video under the VIDEOS tab.
Key Features:
- Exceptional Sound Quality: Features bandpassable crossovers and high-quality RCA cables for unmatched audio clarity.
- Deep, Impactful Bass: Equipped with a dedicated 2000W RMS at 1 ohm, ensuring bass that is both deep and resonant.
- Built for Durability and Reliability: Designed for daily use, it guarantees consistent, top-notch performance.
- Crafted in Korea: A testament to superior quality and craftsmanship.
JP77 Technical Specifications:
RMS Power Ratings:
- 1ohm (CH7): 2000W x1
- 2ohm: 190W x 6 + 1600W x 1
- 4ohm: 120W x 6 + 1000W x 1
- 4ohm Bridged: 350W x 3
Frequency Response:
- CH1 - CH6: 10Hz - 24KHz
- CH7: 10Hz - 250Hz
Input Sensitivity: 6V - 0.2V Signal to Noise Ratio: 80dB T.H.D @ 4ohm: 0.1%
Channel Specific Filters:
- CH1 & CH2: High Pass Filter: 20Hz - 800Hz
- CH3 & CH4: High Pass and Low Pass Filters, Band Pass capability
- CH5 & CH6: High Pass and Low Pass Filters, Band Pass capability
- CH7: Subsonic Filter: 10Hz - 50Hz, Low Pass Filter: 35Hz - 250Hz
Additional Features:
- Remote Bass Knob: For precise control over bass levels.
- Fuse Rating: 330A
- Dimensions: 20.47" (L) x 9.37" (W) x 2.71" (H)
Transform your car audio experience with the Down4Sound JP77 GREEN Amplifier. More than just an amplifier, it's a journey into the world of high-fidelity sound, all wrapped in an eye-catching green finish.
Videos
View AllClose
Warranty Information
Warranty Information
Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier.
All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only.
At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return!
* Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt.
Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/
