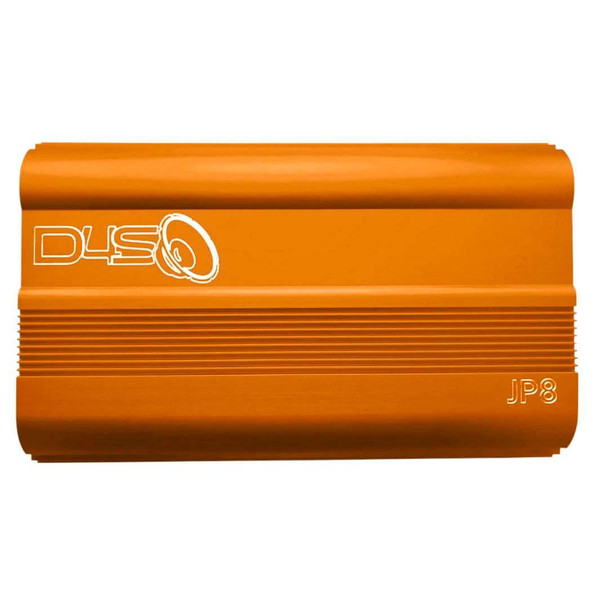

Down4Sound JP8 v1.5 - ORANGE | 800W+ RMS AMPLIFIER
- SKU:
- JP8v1.5-OR-nli
- MPN:
- JP8v1.5-OR
Description
Welcome to the world of power and style with the Orange JP8 800W+ RMS Monoblock Amplifier. Designed and engineered with passion, this amplifier boasts an impressive 800-watt output and is the result of rigorous research and development conducted in Las Vegas, NV, and Dunnellon FL. The Orange JP8 combines the nostalgic feel of Car Audio's OG days with modern technology to deliver an unmatched performance. Read on to explore its features, testing results by Big D Wiz, tuning specifications, and more.
Key Features:
- Vintage-inspired ORANGE SKOOL design from Down4Sound and Car Audio's OG days
- Built-in cooling fan for enhanced performance and longevity
- Plexi black plate and NEW ALUMINUM Bass Knob with voltage and temperature meter
- Standard 1-year manufacturer defects warranty
- Optional half-ohm warranty for added protection during .5 ohm hook-up
Testing Results by Big D Wiz: Independent testing by Big D Wiz confirms the Orange JP8's true power output. Here are the verified RMS power ratings at 14.4 volts:
- 4 OHM: 511 Watts RMS
- 2 OHM: 892 Watts RMS
- 1 OHM: 1256 Watts RMS
Our Testing Ratings (Worst Case Power Output):
- RMS power, 1 ohm: 700W x 1 @ 12v | 850W x 1 @ 14.4v
- RMS power, 2 ohms: 500W x 1 @ 12v | 650W x 1 @ 14.4v
- RMS power, 4 ohms: 490W x 1 @ 12v
- RMS power, 2 ohm Linked: 2300W x 1 @ 14.4v
Tuning Specifications:
- Frequency Response: 10 Hz - 270 Hz
- Low Pass Filter: 35 Hz - 250 Hz
- Subsonic Filter: 10 Hz - 50 Hz
- Bass Boost: 0 - 9 dB
- Input sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 97dB
- T.H.D @ 4 ohm: less than 0.1%
- Single unit fuse rating: 120A
- Strapped fuse rating: 220A
- Operating voltage: 9 to 16 Volts
- Length x Width x Height (inches): 11.81" x 7.4" x 2.24"
- Damping Factor: 100
- Class: D - DIGITAL
Compatibility: The Orange JP8 features 4 GA input for Power Wire and 8 GA input for Speaker Wire, ensuring compatibility with a wide range of audio systems.
Buy Now: Experience the unrivaled power and style of the Orange JP8 800W+ RMS Monoblock Amplifier. Upgrade your audio system and take your music to new heights. Click here to buy now and enjoy the ultimate audio experience.
Warranty Information
Warranty Information
Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier.
All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only.
At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return!
* Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt.
Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/
Down4Sound - Hours of Operation
1 Review
-
JP8 V1.5 - orange 800 Watt RMS amplifer
So far I love this amp. Not only does it look awesome but it really has some features that make it stand out. For one it's color. Second the bass know is sweet! The only issue I've had with it is I didn't know I needed the Big 3 upgrade to run this amp at its full potential. Thus amp requires some serious power so I'm upgrading that and I'll see what it can really do.
