Description

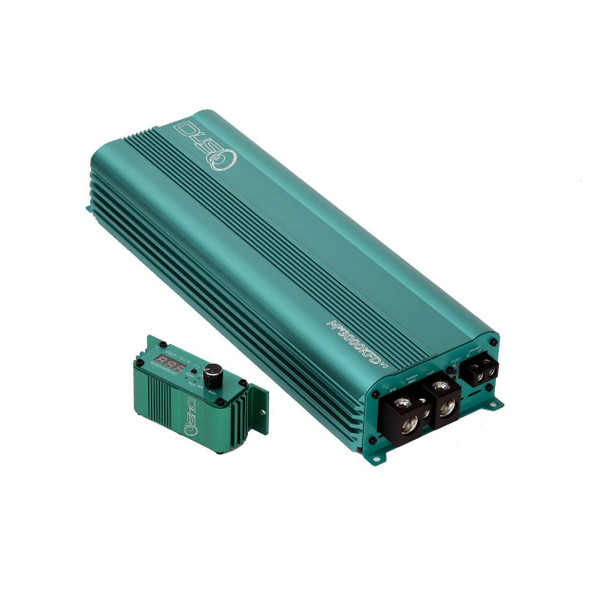

DOWN4SOUND MM3000KFD V2 Mini Maxx Teal 3000W RMS Full-Range Full Bridge Class D Monoblock Amplifier
The DOWN4SOUND MM3000KFD V2 Mini Maxx Teal is a compact, high-output full-range monoblock amplifier built for serious car audio systems that need substantial power without taking up unnecessary installation space. Delivering up to 3000W RMS at 1 ohm, this full-bridge Class D amplifier can power subwoofers, midbass drivers, pro audio speakers, and custom full-range systems.
What Changed from the V1 to the V2?
- Four Inches Shorter: The MM3000KFD V2 is approximately four inches shorter than the V1, providing the same compact high-output platform in a significantly smaller chassis.
Built for Compact High-Output Audio Systems
The MM3000KFD V2 combines a small footprint with wide frequency response, flexible crossover controls, and up to 3000W RMS of rated output. Its compact full-bridge design makes it an excellent option for installations where space is limited but substantial output and system flexibility are still required.
Enhanced Features for Maximum Performance
- Full-Range Design: Supports subwoofer, midbass, pro audio, and custom full-range system applications.
- Full-Bridge Class D Technology: Delivers substantial output and efficient power delivery from a compact chassis.
- Band-Pass Capability: Onboard high-pass and low-pass crossover controls allow advanced band-pass system tuning.
- Precision Crossover Controls: Features 41-click potentiometers for accurate and repeatable HPF and LPF adjustments.
- Remote Monitoring: The included wired remote displays voltage and amplifier temperature information.
- Clipping Indicator: Onboard clipping detection helps with safer system tuning and output monitoring.
- Teal Finish: The teal housing provides a bold, custom appearance for color-matched installations.
Power Ratings
Tested at 14.4V, 1% THD, and 1kHz:
- 1 Ohm: 3000W RMS x 1
- 2 Ohms: 2300W RMS x 1
- 4 Ohms: 1400W RMS x 1
Specifications
- Amplifier Type: Full-Range Full Bridge Class D Monoblock
- Working Voltage: 9V–15.5V
- Power Class: 3000W RMS
- Channels: 1 Channel Monoblock
- Frequency Response: 10 Hz–20.2 kHz
- Signal-to-Noise Ratio: 91 dB
- Damping Factor: 500
- Input Sensitivity: 6V–0.2V
- High-Pass Filter: 20 Hz–800 Hz with x1 and x10 multiplier
- Low-Pass Filter: 50 Hz–800 Hz with x1 and x10 multiplier
- Crossover Controls: 41-click HPF and LPF potentiometers
- Band-Pass Capable: Yes
- Remote Control: Wired remote with voltage and amplifier temperature display
- Clipping Indicator: Yes
- Strappable Connection: No
- Dimensions: 12.99" L x 4.88" W x 2.25" H
- Metric Dimensions: 330 mm L x 124 mm W x 57.3 mm H
- Size Difference: Approximately four inches shorter than the MM3000KFD V1
The DOWN4SOUND MM3000KFD V2 Mini Maxx Teal 3000W RMS amplifier combines compact size, serious output, precise crossover control, and full-range flexibility in one powerful package. Whether it is powering subwoofers, midbass drivers, pro audio speakers, or a custom full-range system, the MM3000KFD V2 provides strong performance without demanding excessive installation space.
Electrical Upgrade Notice
When operating the amplifier at lower impedances or demanding sustained high-output performance, upgrading the vehicle’s electrical system is strongly recommended for stable performance. Recommended upgrades include:
- The Big 3 wiring upgrade
- Upgraded alternator
- Adequate reserve battery capacity
Color: Teal
Warranty Information
Warranty Information
Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier.
All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only.
At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return!
* Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt.
