DOWN4SOUND TCX 15" SUBWOOFER - 1 OHM DVC | 2700W RMS
- SKU:
- TCX15D1
Description

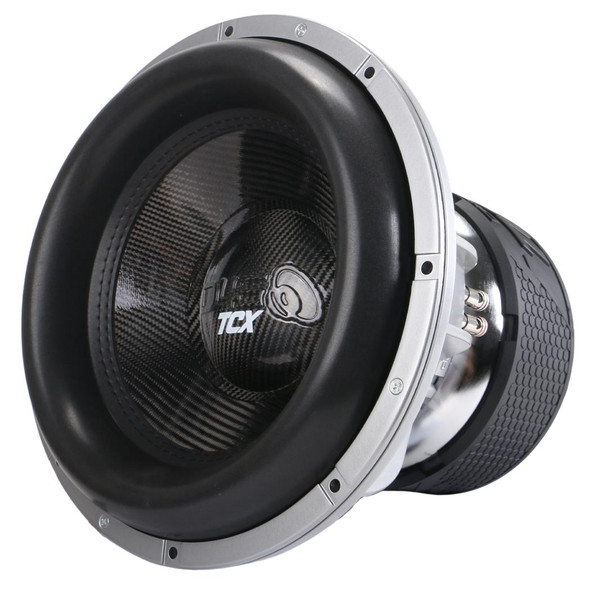

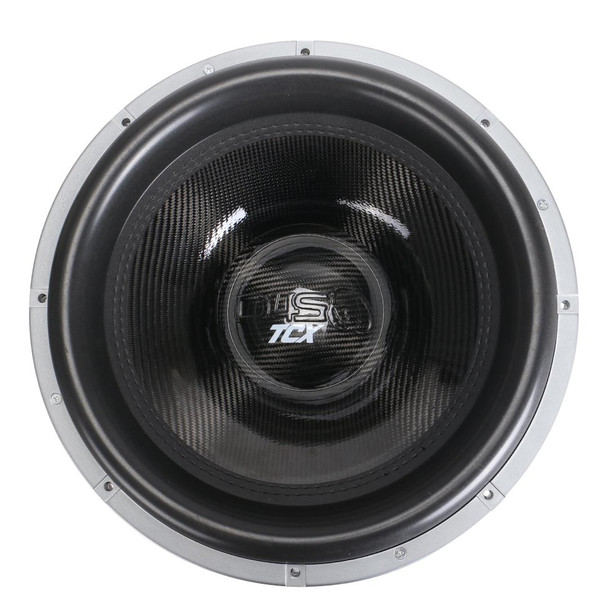

The DOWN4SOUND TCX 15” Subwoofer D1 is built to crush, tuned for control, and engineered for daily or demo use. It features a 3" 8-layer flat aluminum voice coil, carbon fiber cone, stitched surround, and triple-spider suspension system.

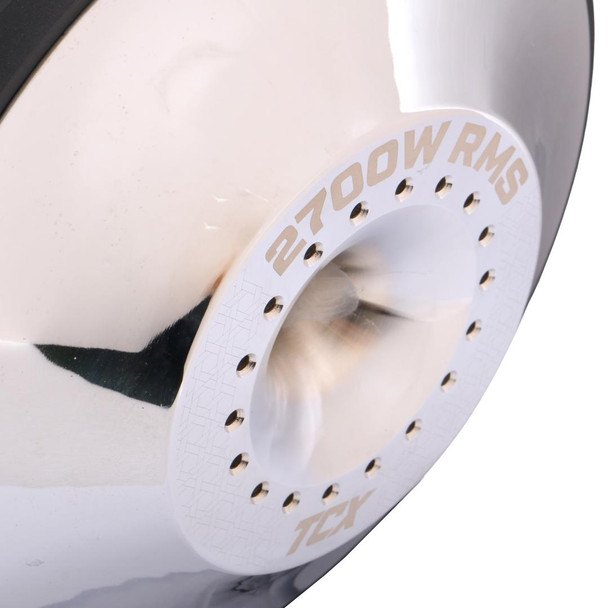

With a 5-stack Y35 ferrite motor and full-vented backplate, the TCX-15 D1 stays cool under pressure. Designed to hit hard and stay clean, it’s perfect for high-output systems where performance matters.
- RMS Handling: 2700W RMS
- Coil Size: 3 Inch – 8 Layer Flat Aluminum
- Impedance: Dual 1 Ohm (D1)
- Cutout Diameter: 360 mm / 14.17 in
- Mounting Depth: 342.90 mm / 13.5 in
- Weight: 109.35 lbs (101.41 lbs without packaging)
- Xmax: ~35 mm (one-way)
- Motor Size: 240 mm (9.45 in)
- Extended pole piece for deep linear travel
- Dual flared pole vent for smooth airflow
- Full gap and backplate venting for thermal stability
- Super High Performance 3" 8-layer flat wire voice coil (bifilar) - 0.3mm anodized ALU former - winding width spec for 3.2" (81mm) +/- 2mm
PRECISION ENGINEERING:
With a BL product of 20.164 T·m and Fs of 28.944 Hz, the TCX-15 D1 delivers deep, musical bass with serious control. The 8-layer coil increases power handling and reduces thermal saturation.
Triple spiders and a carbon cone maintain cone alignment even at high excursion, keeping your output clean and brutal.
- Resonance Frequency (Fs): 28.944 Hz
- Sd: 113.411 cm²
- Mms: 570.678 g
- BL: 20.164 T·m
- Qms: 3.782
- Qes: 0.469
- Qts: 0.417
- No (Efficiency): 0.195%
- Sensitivity (SPL): 84.9 dB
- Vas: 38.870 L
- Cms: 51.958 μm/N
- Krm: 24.110 mOhm
- Erm: 0.624
- Kxm: 74.417 mH
- Exm: 0.588
RECOMMENDED ENCLOSURE:
- Ported Box Volume: 3.25 – 4.0 cu ft
- Tuning Frequency: 31 Hz
- Displacement 0.28 Cubic Feet
