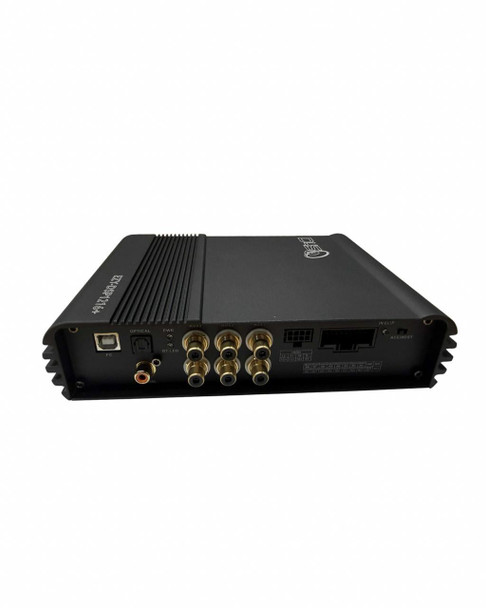

DOWN4SOUND - USED | EZY-1216 DSP+

The EZY-1216DSP+ provides complete command over your audio system with high-precision digital tuning and outstanding sound clarity. Built for professional installers and demanding enthusiasts, it delivers audiophile-grade performance, flexibility, and seamless mobile control in one robust unit.

Key Features

Inputs

• 12-Channel High-Level or Low-Level Input (High Level: 28 Vpp / Low Level: 12 Vpp)
• Integrated ULTRA HD Bluetooth 5.0 with aptX HD
• RCA, Optical, and Coaxial Inputs with built-in limiter

Outputs

• 16-Channel Low-Level Output (12 Vpp)
• Premium Tiffany-Gold RCA Jacks

Digital Signal Processing

• High-Performance 32-bit / 148 MHz DSP IC
• Precise 31-Band EQ with 25 ms Delay per Channel
• 96 kHz / 32-bit Sampling Rate
• All-Pass Filter Function
• Customizable Channel Naming and Adjustable Output Types

Audio Performance

• Signal-to-Noise Ratio (RCA) > 100 dB
• Total Harmonic Distortion (THD + N) ≤ 0.05 %
• Noise Floor −95 dBu
• Intermodulation Distortion < 0.005 %
• Channel Separation > 95 dB
• Frequency Response: 20 Hz – 40 kHz

Power & Environmental

• Operating Voltage: DC 9 – 16 V
• Working Current: 500 mA – 1 A
• Dark Current: < 3 mA
• Operating Temperature: −30 °C to +70 °C (−22 °F to 158 °F)
• Do not in an mount area that has heavy vibration.

Mobile App Integration

• Real-Time RCA Output Voltage Display per Channel
• Tuning File Sharing and Backup Capability

Windows Software

• EZY-DSP1216+ v1.2.7_Setup

iPHONE Software:

• EZY 1216+ ON iOS
