DS18 AUDIO

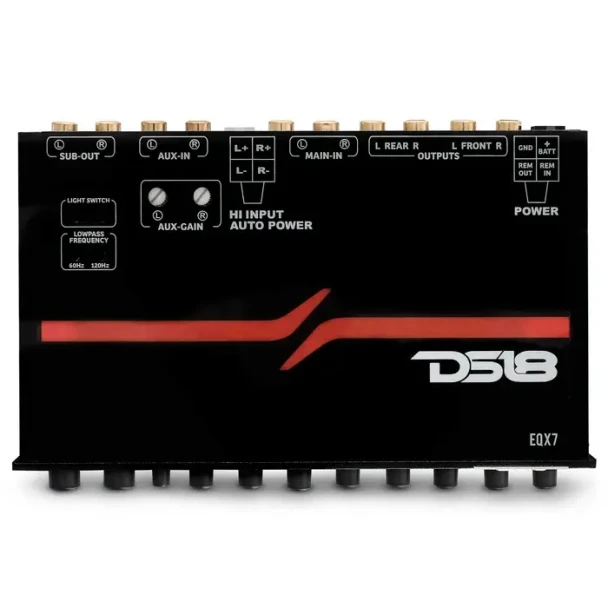

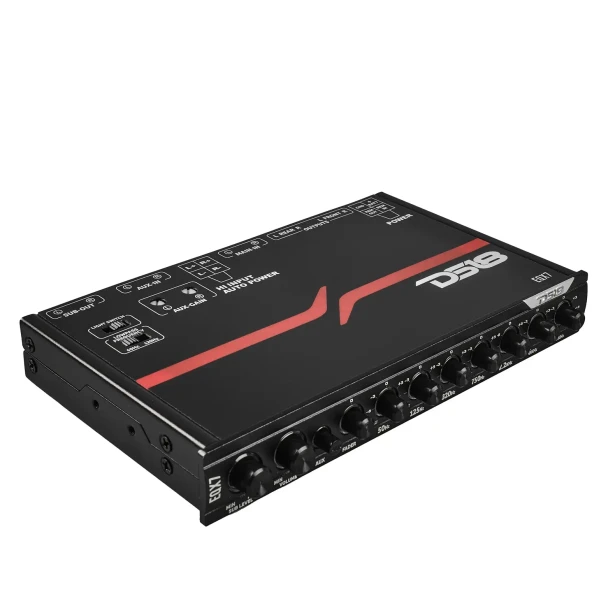

DS18 AUDIO | High Volt 7-Band Equalizer with High Level Input and Auto Turn On

(No reviews yet) Write a Review
SKU:
EQX7
On Sale
  • DS18 AUDIO | High Volt 7-Band Equalizer with High Level Input and Auto Turn On
  • DS18 AUDIO | High Volt 7-Band Equalizer with High Level Input and Auto Turn On
Now: $53.97
Was: $89.95
  Lease to own   Pay as low as   $/week
Current Stock: 2

Sold Out

Frequently bought together:

Description

FINAL SALE, NO RETURNS/EXCHANGES

Key Features

  • 1/2 DIN 7 Band Graphic Equalizer
  • Max Output: 8 Volts
  • Subwoofer Level Control
  • Fader Control L/R
  • High Level & AUX Inputs
  • Master Volume Control

 panel controls right from the driver's seat, giving you full command of your audio system at your fingertips. It's time to shape your sound exactly how you envision it.





SPECS

SKU
EQX7
Type of Equalizer
Graphic
Number of bands
7
Frequency Point HZ
50, 125, 320, 750, 2.2k, 6k, 16k
Boost/Cut
12dB (15dB Subwoofer Frequency)





Crossover Section

Passive Crossover Ways / Type
1 (LPF) (Subwoofer Ch)
Frequency Crossover point
60/120Hz Selectable
Cut-Off Slope
12dB/Oct





Audio Specifications

S/N Ratio
100dB
THD
0.005%
Input Sensitivity
50mV-3V
Input Impedance
20Kohm
Output Voltage



General Features

Operating Voltage
11-15V
Subwoofer Output
Yes (9V)
Audio Controls
Subwoofer Level, Master Volume, Fader
Audio Inputs
Main (RCA), Auxiliar (RCA)
RCA Type
Gold-plated
Housing Material
Metal / Aluminum
Adjustments
Aux Input Gain
Extra Features
Blue/Red Backlit Color Selectable
Hi-Level Speaker Input
Yes
Auto Turn-on
Yes (Hi-Level input)
Remote Turn-on Input/Output
Yes Input and Output
Color / Finish
Satin Black



Measurements

Overall Length
7" / 178mm
Overall Depth
4.4" / 112mm
Overall Height
1.18" / 30mm
Gross Single Unit Weight (lb)
1.5
Single Unit Box Dimensions W x L x H (Inches)
8.75 x 6.25 x 1.75
Quantity of Units in Master Carton
20
Gross Master Carton Weight (lb)
36
Master Carton Dimensions W x L x H (Inches)
18.5 x 13.5 x 9.5
