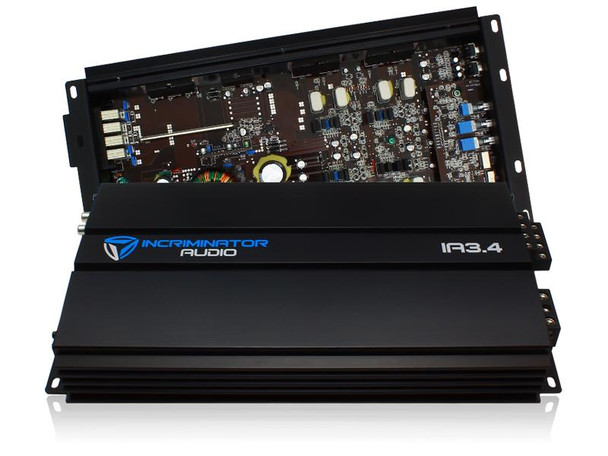

IA3.4 |4 Channel Amplifier

**DISCONTINUED**

The IA3.4 Series amplifiers pack a big punch in terms of features and footprint size. Like all IA series amplifiers, these amps are packed with tons of standard features, and incorporate our Bullet Proof protection technology, that stereo competitors have grown to love. The IA3.4 comes with the same powerhouse crossover you’ve come to love with the IA6.4, from advanced front stages to flexible bandpass crossovers with X1/X10 switches – subsonic filter to low pass or high pass filters nothing is left out. You can mirror the front stage to the back and only use a single set of RCA’s if your limited to one set and still crossover each side with ease. The IA3.4 has endless control options and customization, we even include a bass knob with clipping indicator for even more flexibility.

Specifications

• Rated Power ( 14.4V at 1% THD )
• RMS Power - 4 Ohm Mono : 220W x 2CH
• RMS Power - 2 Ohm Stereo : 110W x 4CH
• RMS Power - 4 Ohm Stereo : 75W x 4>
• Low Pass Filter ( 12dB/Oct. ) : 50Hz - 5000Hz ( X1, X10 )
• High Pass Filter ( 12dB/Oct. ) : 50Hz - 5000Hz ( X1, X10 )
• Subsonic Filter ( 12dB/Oct. ) : 10Hz - 500Hz
• Frequency Response ( +/-1dB ) : 20Hz - 20,000Hz
• Channel Separation : 95dB
• Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
• Signal / Noise Ratio : 105dB
• Dampening Factor ( 4 Ohm ) : 200 +
• Operation Mode : Mirror CH1/2 > CH3/4
• Clipping Indicator LED: CH1/2 & CH3/4
• Power Efficiency ( 4 Ohm ) : 65%
• Fuse Rating ( 14.4V ) : 60A
• Power Input Connection : 4 Gauge
• Operation Voltage : 8.50V - 16.0V
• Speaker Output Connection : 8 Gauge
• Dimensions ( Inches ) : 7.48 W x 2.24 H x 12.60 L
• Dimensions ( Millimeters ) : 190 W x 57 H x 320 L
• Product Manual: Download
