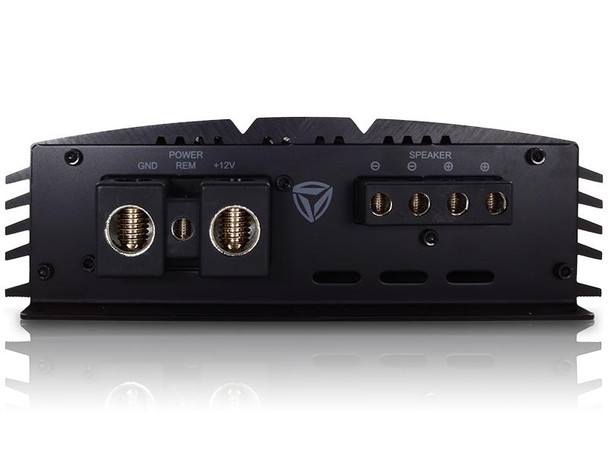

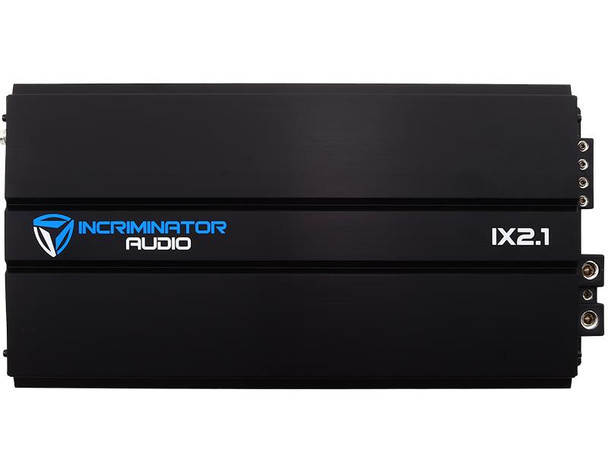

IX2.1 |Mono Block Amplifier

If you’re searching for a small monoblock that can rip out at least 2000 watts, and last you a long time, your search is over. The all new IX2.1 is a beast that is deceiving in its size. We were able to jamb a full 2000 watts @ 1 ohm into a frame only 13-¾” long. That means you have more space for your enclosure to fit a matching IA Death Penalty subwoofer.

Just like the rest of the IX-series mono block amps, you can strap them and run multiples with very little work. Simply just a connecting cable and a flip of a switch. With all that power on tap, we make it easy on you to keep an eye on your speakers with a wired remote that comes with a clipping indicator. That way you know you went a little too far and have time to dial it back and save your subs.

We didn’t forget our roots, don’t worry, you can run up to 16 volts into the IX-series monoblock amps if you want to squeeze out even more power to your subs. As well as we gave all the IX monoblocks 8-gauge speaker wire outs, showing we know that you are going to want to run serious current. With sleek looks, compact size, very serious power, AND a modest price tag, the IX2.1 is an all-around killer choice for your low frequency needs.

• Features

  • Digital Class-D Mono Block Amplifier
  • Dual MOS-FET Pulse Width Modulation Power Supply
  • 1 Ohm Topology
  • 24 dB/octave - Variable State Subsonic Filter
  • 24 dB/octave - Variable State Low Pass Filter
  • 9 dB/octave - Variable State Bass Boost
  • Heavy Duty Copper Layer Double Sided Epoxy PCB
  • Advanced Strapping with Mirror Techology
  • Multi-Layer Bullet Proof Protection Circuit (Themal, Voltage, Speaker Short, DC)
  • Wired Remote Control with Clipping Indicator

  Specifications

  Rated Power ( 14.4V at 1% THD )	IX2.1
  RMS Power - 2 Ohm Linked :	4000W
  RMS Power - 1 Ohm Mono :	2000W
  RMS Power - 2 Ohm Mono :	1000W
  RMS Power - 4 Ohm Mono :	500W
  Low Pass Filter ( 24dB/Oct. ) :	35Hz - 250Hz
  Subsonic Filter ( 24dB/Oct. ) :	10Hz - 50Hz
  Frequency Response ( +/- 1dB ) :	12Hz - 250Hz
  Bass Boost ( 45Hz ) :	0 - 9dB
  Input Sensitivity ( Volt +/- 5% ) :	6.0V - 0.2V
  Signal / Noise Ratio :	95dB
  Dampening Factor ( 1 Ohm ) :	200 +
  Master/Slave/Mirror :	Included
  Power Efficiency ( 4 Ohm ) :	94%
  Fuse Rating ( 14.4V ) :	200A
  Fuse Rating ( 14.4V Linked ) :	400A
  Segmented Power Input Connection :	1/0 AWG
  Operation Voltage :	8.5V - 16.0V
  Speaker Output Connection :	8 AWG
  Dimensions ( Inches ) :	7.48 W x 2.24 H x 13.77 L
  Dimensions ( Millimeters ) :	190 W x 57 H x 350 L
