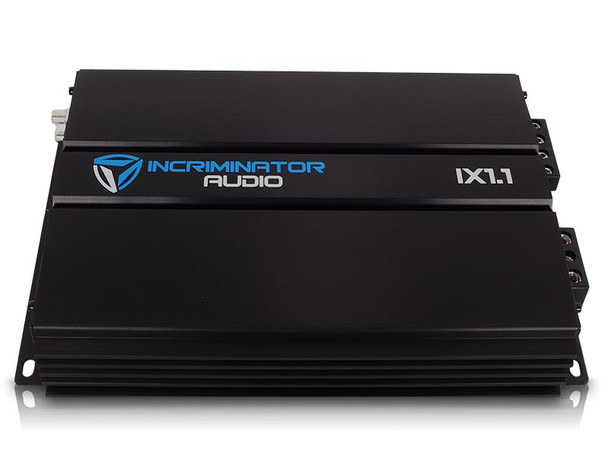

IX1.1 |Mono Block Amplifier

We just reset the whole compact monoblock amplifier market with our new IX mono’s.  That all starts with the IX1.1.  You have less than a square foot to work with and you need a strong amp?  We have you covered, at less than 10” long, the all new IX1.1 pours out 1200 watts at 1ohm mono (or 800 at 2 ohms) with ease.  What that means, is you have power to spare to run a pair of quality subs or a single sub that needs over 1000 watts to get going.  This would be a perfect mate to a Lethal Injection subwoofer.

Running more than one powerful sub, but pinched on amp space?  You can run multiple IX1.1’s in master/slave mode to keep the power on tap you need, while looking good doing it.  All you would need to do is flip a switch and you will have your amps strapped and working as a team.

Employing our multi-layer protection circuitry as well as a heavy duty, double sided PCB, you can relax knowing you will have years of reliable performance from a quality amplifier.  With a built-in, adjustable subsonic filter, you can relax knowing your subwoofer will be protected too.  With a high dampening factor as well as high signal to noise ratio, you will have excellent sound going to your subs from the entire IX line up.

• Features

  • Digital Class-D Mono Block Amplifier
  • Dual MOS-FET Pulse Width Modulation Power Supply
  • 1 Ohm Topology
  • 24 dB/octave - Variable State Subsonic Filter
  • 24 dB/octave - Variable State Low Pass Filter
  • 9 dB/octave - Variable State Bass Boost
  • Heavy Duty Copper Layer Double Sided Epoxy PCB
  • Advanced Strapping with Mirror Techology
  • Multi-Layer Bullet Proof Protection Circuit (Themal, Voltage, Speaker Short, DC)
  • Wired Remote Control with Clipping Indicator

  Specifications

  Rated Power ( 14.4V at 1% THD )	IX1.1
  RMS Power - 2 Ohm Linked :	2400W
  RMS Power - 1 Ohm Mono :	1200W
  RMS Power - 2 Ohm Mono :	800W
  RMS Power - 4 Ohm Mono :	400W
  Low Pass Filter ( 24dB/Oct. ) :	35Hz - 250Hz
  Subsonic Filter ( 24dB/Oct. ) :	10Hz - 50Hz
  Frequency Response ( +/- 1dB ) :	12Hz - 250Hz
  Bass Boost ( 45Hz ) :	0 - 9dB
  Input Sensitivity ( Volt +/- 5% ) :	6.0V - 0.2V
  Signal / Noise Ratio :	95dB
  Dampening Factor ( 1 Ohm ) :	200 +
  Master/Slave/Mirror :	Included
  Power Efficiency ( 4 Ohm ) :	94%
  Fuse Rating ( 14.4V ) :	120A
  Fuse Rating ( 14.4V Linked ) :	240A
  Segmented Power Input Connection :	4 AWG
  Operation Voltage :	8.5V - 16.0V
  Speaker Output Connection :	8 AWG
  Dimensions ( Inches ) :	7.48 W x 2.24 H x 9.84 L
  Dimensions ( Millimeters ) :	190 W x 57 H x 250 L
