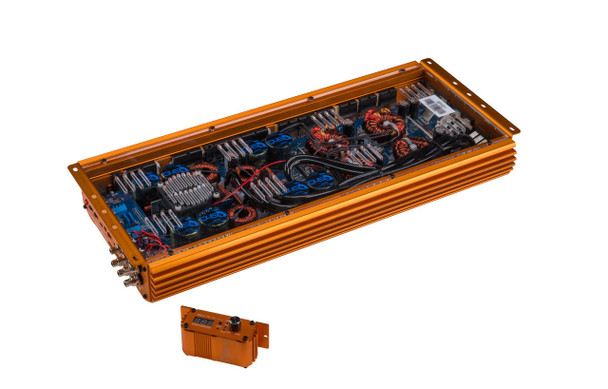

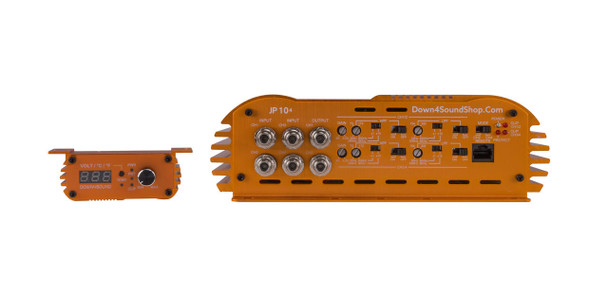

DOWN4SOUND JP 10.4 ORANGE | 6000W RMS - 4 Channel Amplifier

Down4Sound JP 10.4 ORANGE Amplifier: 6000W 4 Channel Amplifier

Experience the ultimate sound revolution with the Down4Sound JP 10.4 ORANGE. This 4 Channel Car Amplifier is a powerhouse of audio performance, delivering a staggering 6000W output. Crafted for those who seek the pinnacle of car audio systems, the JP 10.4 ORANGE is a fusion of immense power and advanced technology. It features a SNAZZY bass knob, bandpassable crossover, and true Tiffany RCA connections, ensuring your audio is not just loud, but crystal clear and rich in quality. It's more than an amplifier; it's an audio masterpiece.

Key Features:

• Exceptional Power Output: Delivers 1000W per channel RMS at 4 OHM, positioning it among the elite amplifiers in its class.
• Bass Control: Comes with a SNAZZY bass knob for precise bass level adjustments.
• Premium Connections: Equipped with true Tiffany RCA connections for optimal sound quality.

Enhanced Connectivity:

• Dual 0GA Power and Ground Inputs: For a stable and robust power supply.
• Speaker Outputs: Supports up to 4GA speaker wires, ensuring compatibility with a wide range of speakers.

Technical Specifications:

• RMS Power Ratings:
  • 2ohm: 1300W x 4
  • 4ohms: 1000W x 4
  • 4ohms Bridged: 3300W
• Frequency Response: 10Hz - 21Khz
• Filters:
  • High Pass: 20Hz - 800Hz (Multiply: x1, x10 ranging from 200Hz-8KHz)
  • Low Pass: 50Hz - 800Hz (Multiply: x1, x10 ranging from 500Hz-8KHz)
• Input Sensitivity: 6V - 0.2V
• Signal to Noise Ratio: 90 Db
• T.H.D @ 4ohm: 0.1%
• Fuse Rating: 550A TOTAL
• Dimensions: 19.68" L X 9.37" W x 2.71" H

Additional Features:

• Class D Technology: Ensures efficient and high-fidelity sound output.
• Plexi Backplate: Adds both durability and a sleek look.
• Internal High-Speed Fan: Keeps the amplifier cool during extended use.
• Origin: Made with pride in South Korea.
• Recommendation: For optimal performance with a stock radio, use a quality lineout converter or DSP.

Important: Electrical Upgrade Required for Warranty

To maximize the potential of this amplifier, an electrical upgrade is mandatory. Not upgrading will result in voiding the warranty. The required upgrades include:

• The Big 3: Crucial for managing the increased power demand.
• Upgraded Alternator: Ensures a steady and sufficient power supply.
• Reserve Battery(s): Provides consistent and reliable power.

The Down4Sound JP 10.4 ORANGE Amplifier isn't just an amplifier; it's a testament to superior sound engineering. Designed for audio enthusiasts, it offers unmatched power and precision, all in a vibrant orange finish.
