Description

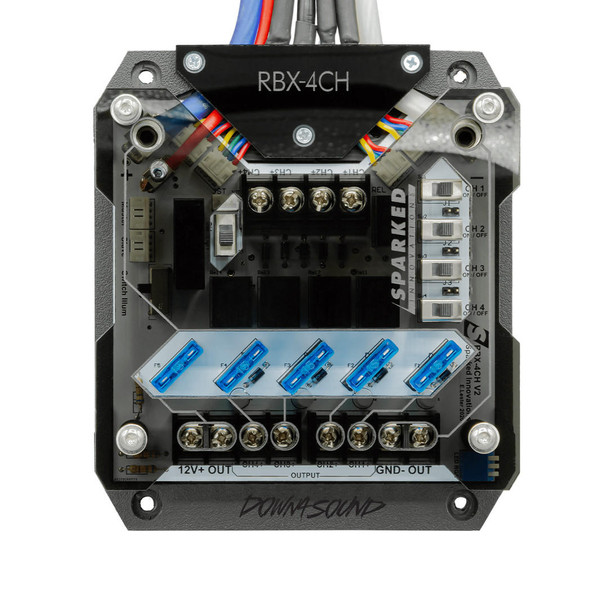

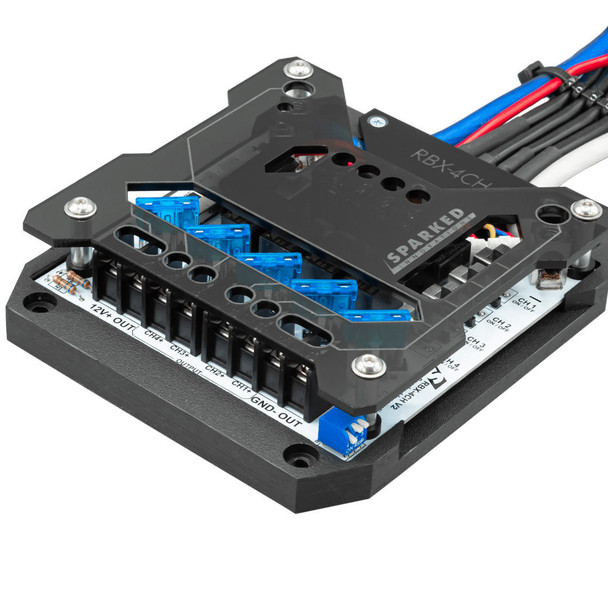

Self-contained four-channel 12VDC relay box with ignition interrupt and master/slave functionality. You may use a fifth switch and wire harness connected to the Master input to control the entire on/off functionality of the relay box. Alternatively, you may hook an accessory wire from your vehicle’s ignition to the IGN input for easy remote turn-on capability.
Eliminate the need to wire your own switches by purchasing an 18ft pre-wired extension harness for easy plug and play operation. One side plugs into the switch, the other side plugs into the relay box channel of your choice.
| Product Brand |
Sparked Innovations |
|---|---|
| 12VDC Voltage Range |
9~18VDC |
| Dimensions |
1.20"H, 5.20"W, 6.00"L |
| Remote Input |
Positive (+) |
| Switched Channels |
4 |
| Non-Switched Channels |
1 |
| Total Peak Current Capacity |
90A |
| Total Continuous Current |
75A |
| Current Capacity Per Channel |
15A |
| Fuses |
5 x 15A ATC |
| Power Wire Input Gauge |
4~10 AWG |
| Remote Input Terminals |
10~22 AWG Fork Terminals or Bare Wire |
| Output Terminals |
10~22 AWG Fork Terminals or Bare Wire |
| Weight |
12.2 oz |
| Product Manufacturer | |
| GTIN12 |
860007247002 |
