Down4Sound

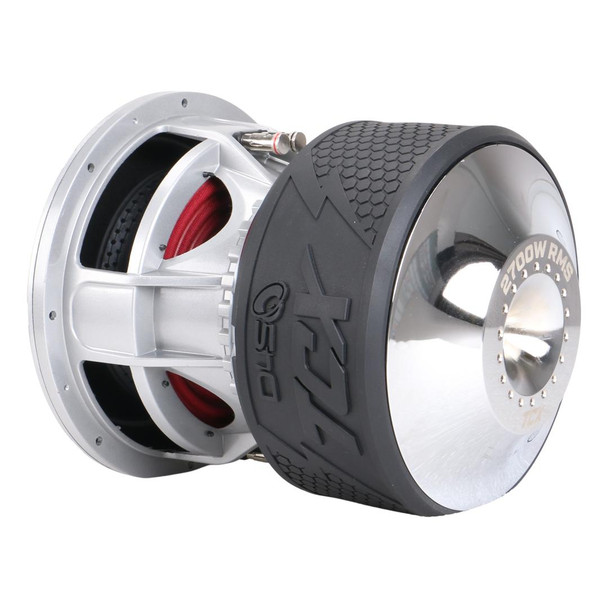

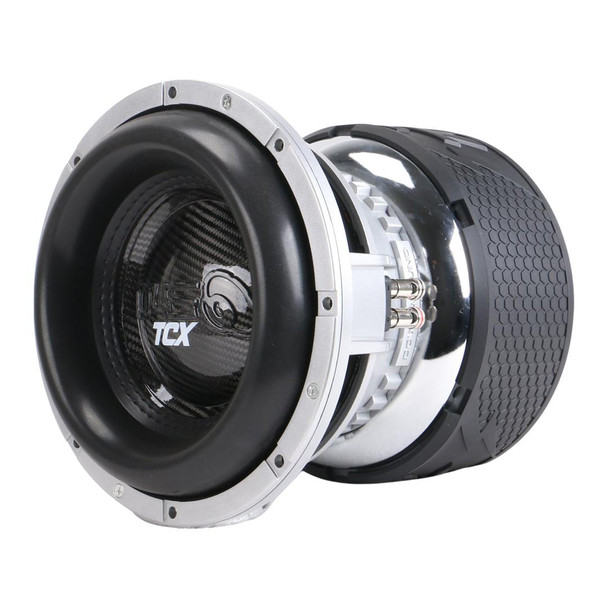

DOWN4SOUND TCX 10" SUBWOOFER - 2 OHM DVC | 2700W RMS
- SKU:
- TCX10D2
Description
The DOWN4SOUND TCX 10” Subwoofer D2 is a deep-hitting, small-frame sub engineered for demanding applications. With a 3" 8-layer flat aluminum voice coil, carbon fiber cone, and 5-stack Y35 motor, it’s optimized for thermal efficiency and maximum output at 2 ohm loads.
A stitched high-roll surround and triple-spider suspension keep the cone stable under hard excursion, while the full-vented motor system ensures long-lasting thermal performance during heavy play.
QUICK NOTES:
- RMS Handling: 2700W RMS
- Coil Size: 3 Inch – 8 Layer Flat Aluminum
- Impedance: Dual 2 Ohm (D2)
- Cutout Diameter: 261 mm / 10.28 in
- Mounting Depth: 292.1 mm / 11.50 in
- Weight: 102.5 lbs (97.66 lbs without packaging)
- Xmax: ~30 mm (one-way)
- Motor Size: 240 mm (9.45 in)
- Extended pole piece for increased control
- Dual flared pole vent for reduced air turbulence
- Full basket and gap venting for coil cooling
- Super High Performance 3" 8-layer flat wire voice coil (bifilar) - 0.3mm anodized ALU former - winding width spec for 3.2" (81mm) +/- 2mm
PRECISION ENGINEERING:
With a BL rating of 28.578 T·m and a low Fs of 39.76 Hz, the TCX-10 D2 balances sensitivity and stiffness for tight, deep low-end output. The 8-layer voice coil improves current handling and reduces the risk of heat saturation under hard load.
Whether you’re chasing SPL or just need daily bass with headroom, the TCX-10 D2 is ready.
TECHNICAL SPECIFICATIONS:
- Resonance Frequency (Fs): 39.760 Hz
- Sd: 113.411 cm²
- Mms: 430.207 g
- BL: 28.578 T·m
- Qms: 4.011
- Qes: 0.678
- Qts: 0.582
- No (Efficiency): 0.074%
- Sensitivity (SPL): 80.5 dB
- Vas: 7.070 L
- Cms: 37.795 μm/N
- Krm: 53.788 mOhm
- Erm: 0.538
- Kxm: 103.337 mH
- Exm: 0.618
RECOMMENDED ENCLOSURE:
- Ported Box Volume: 1.25 – 1.75 cu ft
- Tuning Frequency: 34 Hz
- Displacement 0.23 Cubic Feet
Warranty Information
Warranty Information
Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier.
All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior to the return of the product or if no defect is found you are required to pay for return shipping only.
At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return!
* Extended additional warranty purchased on amplifiers take effect from the date of purchase and must also be stated on original sales invoice or receipt.
Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/
Down4Sound - Hours of Operation
Additional Information
Model: |
TCX |
Ohm: |
2 |
Subwoofer Size: |
10 |
Product Type: |
Subwoofer |
Subwoofer Type: |
DUAL VOICE COIL |
