DS18 Audio

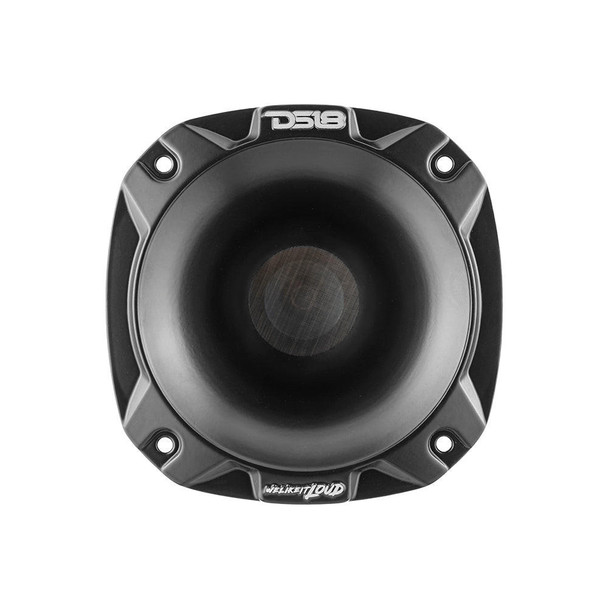

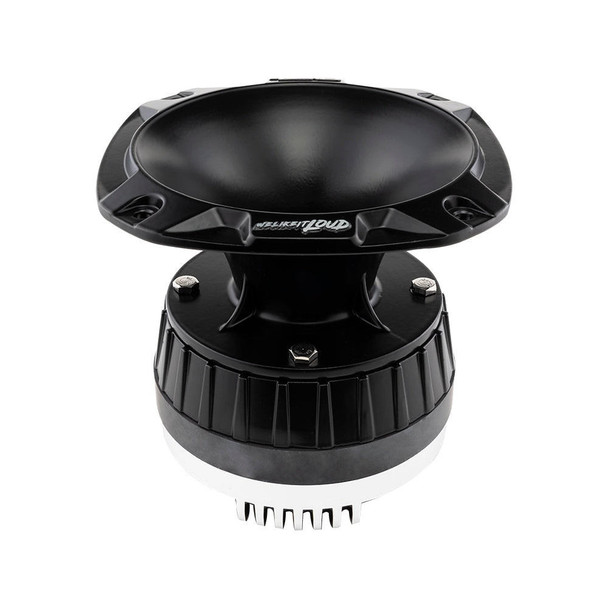

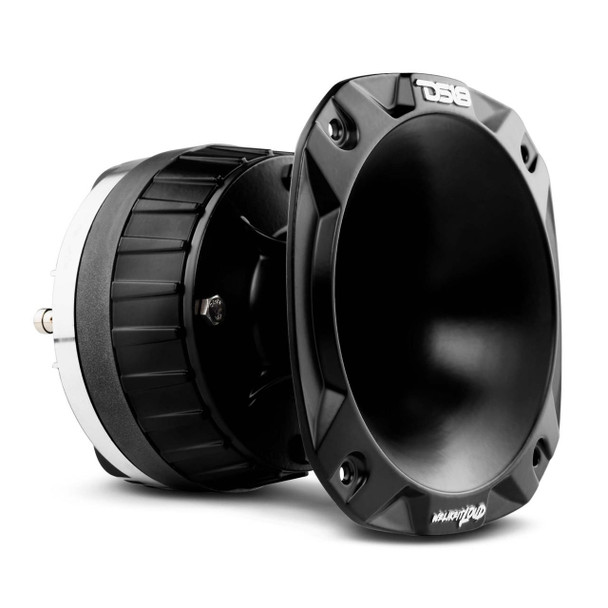

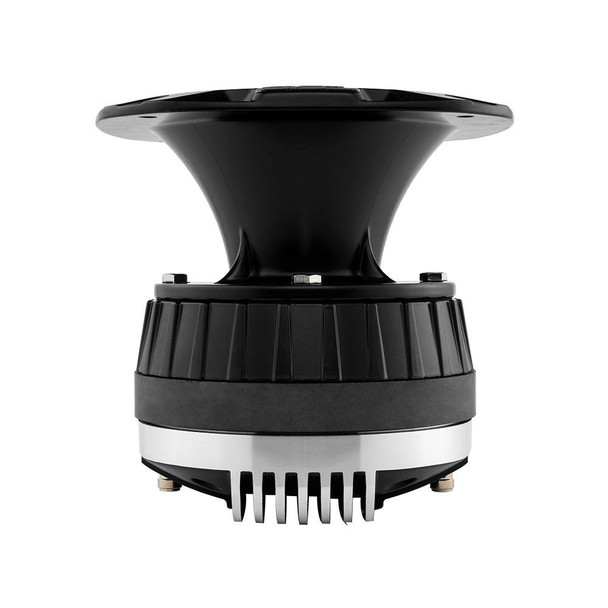

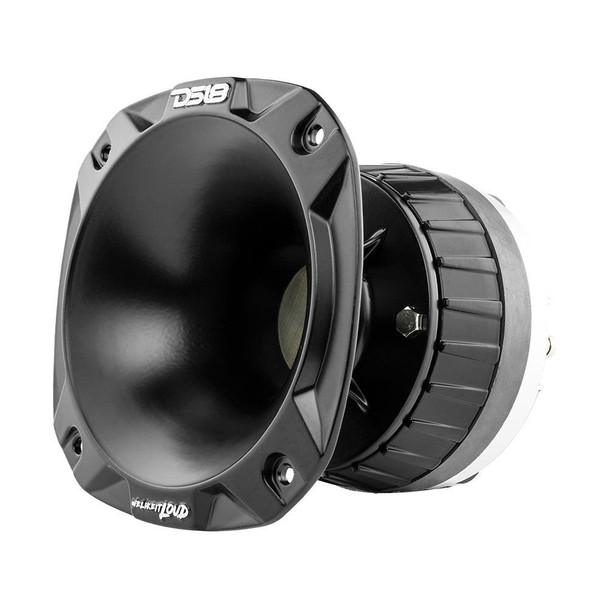

DS18 PRO-DKH1XS 2" Throat Bolt On Compression Driver with Spacer, 2" Throat Titanium Voice Coil and PRO-HA52/BK Horn 640 Watts 114dB 8-ohm Mounting Depth 5.74"
(No reviews yet)
Write a Review
- SKU:
- PRO-DKH1XS
Description
The DKH1S includes the DS18 DKH1 driver plus our newly redesigned shorty throat so you only need 4.9 inches mounting depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and Peak at 640w you will be sure to draw everyone's attention to your audio!
Highlights
- DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
- Aluminum "Shorty" throat with brushed DS18 logos for an amazing look and great fitment.
- DKH1 Driver with an AES rating of 160 watts and peak of 640w for super loud and vibrant highs with a Titanium 8 ohm voice coil.
- 5.7 inch mounting depth and 6 inches total mounting depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.
Technical Details
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| AES Power Handling | 160W |
| Sensitivity | 115dB |
| Frequency Response | 630Hz - 20KHz |
| Recommended HI Pass Crossover | 900 Hz |
| Motor | |
| Voice Coil Diameter | 2.03"/51mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35oz |
| Measurements | |
| Overall Diameter | 7"/180mm |
| Overall Depth | 6"/154.7mm |
| Bolt Pattern/Type | 5.5mm hole-6.3"/161 mm Diameter |
| Mounting Depth | 5.7"/145.8mm |
| Mounting Hole Diameter | 5.7"/145mmm |
