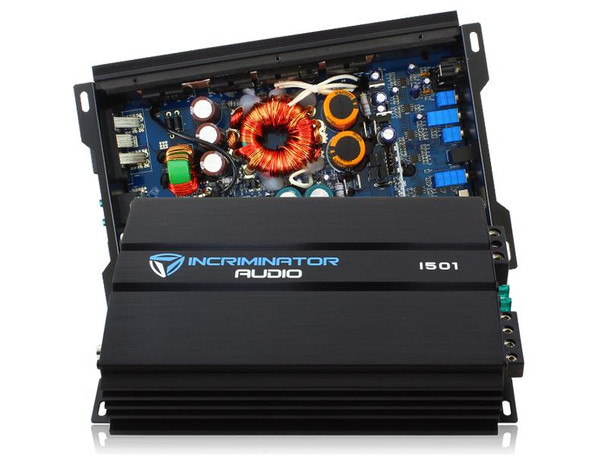

I501 |Mono Block Amplifier

The I Series amplifiers is Incriminator Audio's first line of entry amplifiers. The I Series models have been designed from the ground up to be a more affordable solution, while still having all of the features that you have come to expect from our IA Series amplifiers, from remotes and strapping to more flexible crossover networks.

Specifications

• Rated Power ( 14.4V at 1% THD )
• RMS Power - 2 Ohm Linked : 1000W
• RMS Power - 1 Ohm Mono : 500W
• RMS Power - 2 Ohm Mono : 375W
• RMS Power - 4 Ohm Mono : 250W
• Low Pass Filter ( 24dB/Oct. ) : 35Hz - 250Hz
• Subsonic Filter ( 24dB/Oct. ) : 10Hz - 50Hz
• Frequency Response ( +/-3dB ) : 15Hz - 250Hz
• Bass Boost ( 45Hz ) : 0 – 9dB
• Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
• Signal / Noise Ratio : 95dB
• Dampening Factor ( 1 Ohm ) : >200
• Operation Mode : Master/Slave
• Power Efficiency ( 4 Ohm ) : 85%
• Fuse Rating ( 14.4V ) : 50A
• Fuse Rating ( 14.4V Linked ) : 100A
• Power Input Connection : 4 Gauge
• Operation Voltage : 10V - 16.0V
• Speaker Output Connection : 8 Gauge
• Dimensions ( Inches ) : 6.85 W x 2.36 H x 10.24 L
• Dimensions ( Millimeters ) : 174 W x 60 H x 260 L
